Product Description:

This model is universal Controller Z.VST.3463.A1 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV c T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.

Controller Z.VST.3463.A1 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip from the company Mstar MDS3463GU-Z1

Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

Feature:

Support Digital Signal
Controller chip: MDS3463GU-Z1
TV tuner chip: Rafael R842
flash memory: 25Q64CSIG
Power Input: DC 12V 4A
Chip Audio: CS37AD2AB
Audio output power: 2x8W
Consumption: operating mode -> = 6W
                       simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
                           HDMI
                           VGA
                           YPBPR
Additional inputs outputs: audio mini jack 3.5mm USB

Z.VST.3463.A’ s USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG.

How to know if your panel suitable for this board?
Step 1: Find your LCD model\'s resolution (you can check the resolution from this link: http://www.panelook.com/index.php)
Step 2: Leave a message about your email when you order ,so we can send the firmware to you.


Supported resolutions:
1024 X 786 6 bit 1 channel
1024 X 786 8-bit 1 channel
1280 X 1024 8-bit 2 channel
1366 X 768 6-bit 1 channel
1366 X 768 8-bit 1 channel
1440 X 900 8 bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2 channel
1920 X 1080 8-bit 2 channel
1920 X 1080 6-bit 2 channel
Firmware for 3463T2

Programming:

1. The screen of the program is copied(.bin file) to the usb drive.
2. Insert USB Flash disk to the USB port on the board
3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.(Note that write programs do not power outages, crashing won\'t be able to use)



Package included:

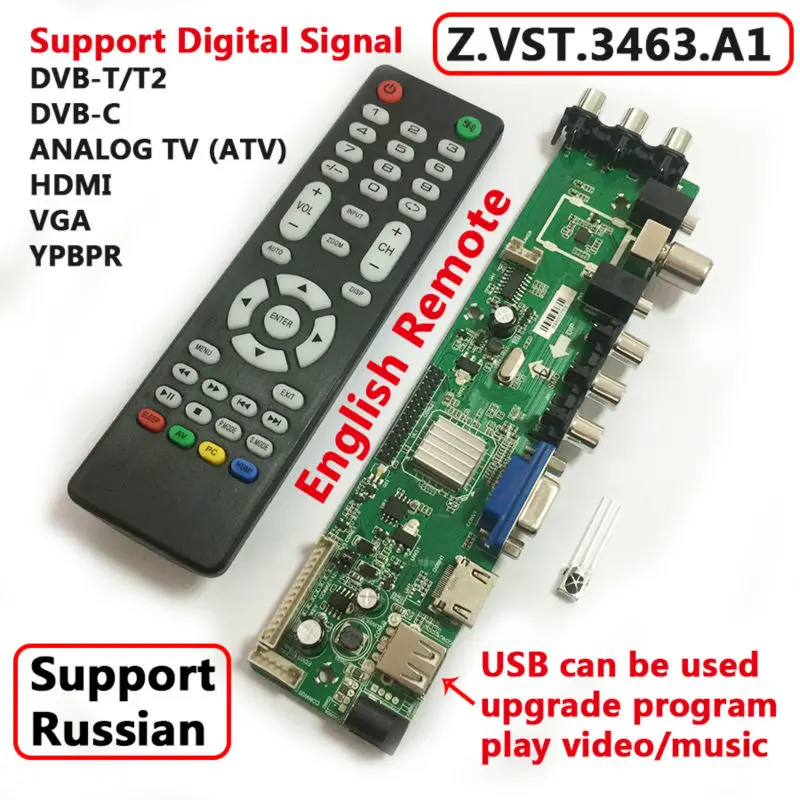

1 x Z.VST.3463.A1 Control board
1 x Remote Control (English Keypad)
1 x IR

NOT INCLUDE LVDS CABLE
